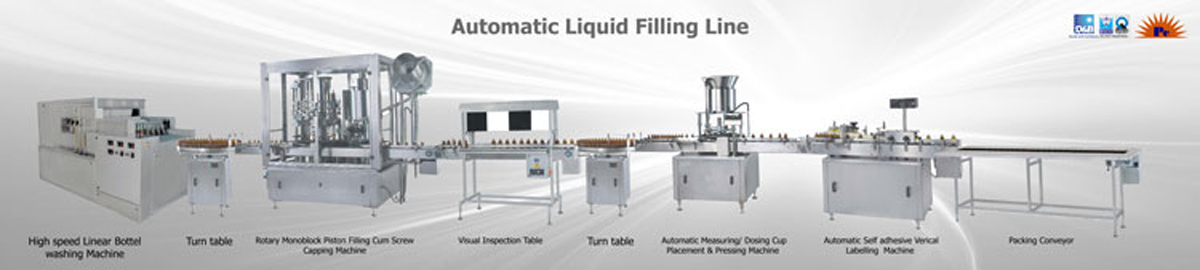

Automatic Liquid Filling Line

Automatic High Speed Linear Bottle Washing Machine (tunnerl Type)

Three-cycle rinsing allows flexibilities of various wash cycles such as fresh water, dematerialized water etc. as per the rinsing requirement of bottle. All the pumps are made of SS and all the water contact parts are made of SS 316 on a heavy base of SS structure. In tunnel design is such that separation is maintained between feeding zone and discharge zone of the cleaned containers. All the mechanical drives are separated and isolated from the washing zone. Approved materials only are used for construction, together with a careful choice of components, thereby taking in to consideration all aspects of sanitation and consequence complying with the pharmaceutical G.M.P. requirements.The quality of rinsing is ensured through 3 sets of inner and 2 sets of outer nozzles accurately placed to direct the jet at center of the bottle and the bottle comes out with water totally drained with minimum droplets of water.

Salient Features of Automatic High Speed Linear Bottle Washing Machine

High-pressure spray nozzles ensure perfect wash of Bottles.
Interchangeable wash sequences.
Totally fabricated from SS Materials, including the basic frame.
No change parts required for washing of round bottle saving time of change over. (Change Parts require for Flat bottles & if change of neck size.)
All parts coming in contact with washing zones / jet are made from SS 316 materials.
The machine suitable for handling washes of round and flat glass bottle (With help of change parts).
Water re-cycling arrangement is possible as per customer’s need.
Machine is totally rigid and with stands continuous operation for long working. Hours without any trouble. • Higher capacity centrifugal pump to wash bigger container.
Third Tank & pump can be fitted (optional).

Technical details of Automatic High Speed Linear Bottle Washing Machine

Model PEW-N-LBW-150
Out put / Hour* 9000 bottles
No. of Pocket Across 12
Tank Capacity 80 Ltrs. S.S. 316
Wash Cycle 3 Inner + 1 Outer + 1 Air
Cycle Timing 3.5 Second for each wash + 1.5 second for traveling.
Water / Air Consumptions 400 Ltrs. / Hr / Cycle / Pressure 2.5 Kg @ 20 CFM
Machine Dimensions (In mm) 1450 x 2500 x 1550
Case Dimensions (In mm) 1900 x 3000 x 2000
Net Weight 1600 Kgs
Gross Weight 2200 Kgs
Change parts required
1. (A) Neck Dia. Bottle holding pocket.
2. (B) Flat Container Size: Delivery chute.

Turn Tablet Scrambler And Un-scrambler

Turntable is useful to ensure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line. Stainless steel scrambler & un scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance.

Salient Features of Turn Tablet Scrambler & Un Scramble

Construction AISI S.S. 304 quality.
Three step pulley for different speed.
Special self-aligning bearings ensure smooth and trouble free operation.
Suitable for different type of container.
S.S. elegantly matt finished body.
Reduction gears ensure jerk free and noiseless operation.

Techanical Specification Turn Tablet Scrambler & Un Scramble

Direction Clockwise / Anti clock wise as per requirement
RPM of Disk 4/5/6 through step pully
Power Characteristics** 0.5 HP/415 V/50 Hz
Height of Disk** 860 mm to 910 mm
Machine Dimensions** 780 x 780 x 1160
Case Dimensions** 975 x 975 x 1300
Net Weight 150 Kgs.
Container size Ø 22 mm to Ø 100 mm

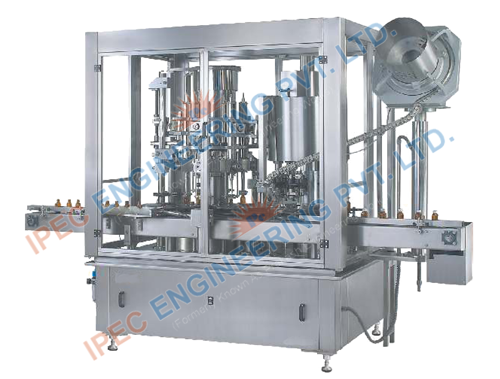

Automatic Rotary Piston Filling Cum Sealing Machine

Automatic Rotary Piston Filling Cum Sealing Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine, work on volumetric principle with rotary motion. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body. No container No filling & No Sealing system arrangement is standard features of the machine.

Salient Features of Automatic Rotary Piston Filling Cum Sealing Machine

Motorized Height Adjustments.
Automatic chain washing system for conveyor belt.
In-built pre-inspection.
Nitrogen Flushing.
Cap Elevator to feed caps to the cap feeding bowl.

Technical Specifications of Automatic Rotary Piston Filling Cum Sealing Machine

Model PEW-N-RFSC-4/4
Output/Hour* 1500 to 6000
Number of head/Syringe/cap 4/4
Direction of Movement** Left to Right
Fill Size*** 30 ml to 200 ml
Height of Conveyor ** 910 mm to 960 mm Adjustable.
Machine Dimensions** 3050 (L) x 1400 (W) x 2200 (H)
Case Dimensions 3250 (L) x 1600 (W) x 2400 (H)
Net Weight 2400 Kgs
Gross Weight 2950 Kgs

Automatic Measuring Dosing Cup Placement & Pressing Machine

Highly efficient machine with elegant look, consists of conveyor, vibrator, feed worm, container holding star plate & pressing plate. The feed container moving on conveyor belt are feed into an In-feed star wheel through In-feed worm, star wheel bringing the sealed container below the pressing plate, mean while the sealed bottle pickup a cup from the delivery chute of bowl, where the body and the neck of the container are positioned below the pressing plate, where the pressing plate press cup gradually & performing perfect operation of cup pressing.

Salient Featuers of Automatic Measuring Dosing Cup Placement & Pressing Machine

No container no cup arrangement.
SS elegantly matt finished body Single motor synchronizes conveyor, star wheel, & platform turret.
Adjustable height of conveyor belt, to align with other machine of the line.
Specially designed hopper is provided to increase storage capacity of bowl.
Low noise level, low power consumptions.
Self lubricating UHMW- PE guide profile for low friction wear surface, smooth and noiseless conveying.
SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.
A/C drive to synchronize, Conveyor, Star wheel and Platform turret & capping bowl.
Universal coupling for quick and easy setting of In-feed worm

Technical Specification of Automatic Measuring Dosing Cup Placement & Pressing Machine

Model PEW-MP-MCPP-150
Output/Hour* 3600 to 9000 Bottles
Direction of Movement Left to Right
Electrical Specification**
Main Motor
Cap Feeding Bowl
0.75 HP / 220 Volts / 50 Hz.
300 Watt Magnetic Coil
Height of Conveyor** 860 mm to 910 mm
Machine Dimension** 2135 mm (L) x 1020 mm (W) x 1800 mm
Case Dimensions 2250 mm (L) x 1150 mm (W) x 2200 mm
Net Weight 500 kgs.
Gross Weight 850 kgs

Automatic Self Adhesive Vertical Labeling Machine

The machine is used for full/partial wrap around labeling on different size of round containers. The Automatic Vertical Sticker Labeling Machine is one of the most users friendly. The machine is used for full/partial wrap around labeling on different size of round containers. It is capable of labeling up to 150 containers per minutes depending on products and label size. The automatic model is equipped with roller spacing device resulting in a simple operation with “No change parts required”.

Salient Featuer of Automatic Self Adhesive Vertical Labeling Machine

High production speeds.
Stainless steel 304 construction.
GMP design.
Accurate label placement.
Full security package including counter.
Product data storage facility.
No change parts requirements.
Very less down time for change over.
Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

Technical Features of Automatic Self Adhesive Vertical Labeling Machine

Direction of Movement Left to Right
Output/Hour* 3600 to 9000 Nos.
Electrical Specification**
Conveyor Motor 0.50 HP, 415 Volts, 50 Hz
Pressing device Motor 0.25 HP, 220 Volts, 50 Hz
Sticker Roll Servo Motor 400 W
Height of Conveyor** 860 mm to 910 mm
Machine Dimensions** 1835 mm (L) x 600 mm (W) x 1450 mm (H)
Case Dimensions 2050 mm (L) x 800 mm (W) x 1650 mm (H)
Net Weight 350 Kgs.
Gross Weight 600 Kgs.

Packing Conveyor Belt

The conveyor belt brings the container or products from the labeling/blister/strip machine. The packing conveyor belt is having stainless steel table top with moving endless sandwich belt in the center. Tabletop is fixed to the same structure made out of SS square pipe & supported on adjustable bolts. Tabletop is of 12 inches working space on both side of the conveyor belt for final visual inspection & packing into the box.

Salient Features of Packing Conveyor Belt

Structure is made of S.S. 304, 30 mm sq. pipe, 16 SWG with matt finish.
A/c frequency variable drive.
Belt-alignment system for long life & straight running of belt. Direct gear drive.
Length can be made as per customer requirement.
S.S. elegantly matt finishing.
Adjustable height of conveyor belt, to align with other machine of the line
Self-alignment bearing for easy maintenance.
Rigid vibration free construction for trouble free performance.
Direction of Movement Left to Right Speed** 7.5 Mtr./Min. upto 12 Feet Long 12 Mtr./Min. from 13 Feet to 24 Feet Long
Power Characteristics** 0.25 HP/220 V/50 Hz up to 12 feet long 0.5 HP/220 V/50 Hz from 13 feet to 24 feet long.
Height of Conveyor** 860 mm to 910 mm
Belt width** 9” or 12” as per requirement.
Belt Details** PVC, endless 2 ply sandwich , 2mm thickness.
Machine Dimensions** 9” width belt As per requirements (L) x 830 mm (W) x 910 mm (H) 12” width belt As per requirements (L) x 900 mm (W) x 910 mm (H)
Case Dimensions** 9” width belt As per requirements (L) x 1050 mm (W) x 1150 mm (H) 12” width belt As per requirements (L) x 1100 mm (W) x 1150 mm (H)
Net Weight Depend on Length
Gross Weight Depend on Length

Cartoning Machine LP CRM

The efficient way for Pahrma Cartoning. Semi Automatic Cartooning Machine (box folding-Filling- Packing) It is Specially design to automatic pack small Quantities’ multi size box.

With low cost and only require small area. It is suitable for Various size of box. The machine is a vertical type with multiple Function and require a short time to change mould. The machine has long service life and easily clean. Product automatic Drop into box via star wheel and conveyor.

Salient Features of Cartoning Machine LP CRM

Suitable for Round bottled medicine, food-stuff, cosmetic, etc. Packing into square box.

Technical Details of Cartoning Machine LP CRM

Mechanical Speed Maxi. 60 Cycles/min
Air consumption 40 L/Min at 6 kg/cm2/pressure
Carton size (mm) Mini. 20(L) x 15(W) x 60 (H) Maxi. 82(L) x 82(B) x 205 (H)
Carton GSM 285 to 320 GSM
Power supply 220V A.C. 50/60Hz Single Phase
Powder consumption 0.6KW
Machine wt 400 kgs
Gross Wt 480 kgs
Machine Dimensions 1150L x 1500W x 1400 H
